We have come up with something special for EVs!

Access to the lifting points of modern vehicles is becoming increasingly demanding, especially in the area of electric vehicles.
With our E-adapters, we offer a simple and safe solution that can also be used for your existing AUTOPSTENHOJ lift in many cases.
The slim and low design ensures accessibility to the lifting points and the battery. With our E-adapters, nothing prevents you from changing the battery.
The minimum height remains as low as usual despite the E-adapter.

Simple and uncomplicated switching to other adapters or wheel support devices is done in a few quick steps.

The E-adapters come with a strong 1000 kg lifting capacity per adapter.

The combination of multi-adapter and E-adapter creates the ideal solution for the safe lifting of electric vehicles.

Versions

E-adapter for Ø 50 mm swivel arm pick-up
Item no. 16046 I 1 set = 4 pieces

  • Adjustable to 5 positions
  • Can also be used as a pure arm extension by 100 mm
  • Locking via hand lever for optimum safety
  • Form-fit design optimised for lifting points that are difficult to access
  • Quick and easy to replace with wheel support devices or other adapters
  • Consistently low minimum height
  • Lifting capacity: 1000 kg


E-adapter for Ø 40 mm swivel arm pick-up
Item no. 16047 I 1 set = 4 pieces

  • Incl. reduction adapter from Ø50 mm to Ø40 mm
  • 45°angled for optimum accessibility
  • Form-fit design optimised for lifting points that are difficult to access
  • Quick and easy to replace with wheel support devices or other adapters
  • Consistently low minimum height
  • Lifting capacity: 1000 kg

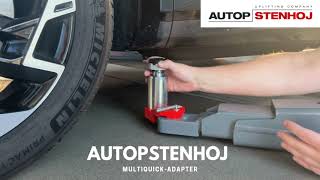

Multi-adapter - item no. 16051 (1 piece)
Lifting capacity per multi-adapter: 1000 kg

Inserts for multi-adapters must be ordered separately:

  • Item no. 16053 - Groove adapter
  • Item no. 16054 - Pin adapter
  • Item. no. 16010 Lifting extension 50 mm
  • Item. no. 16011 Lifting extension 100 mm
